Description

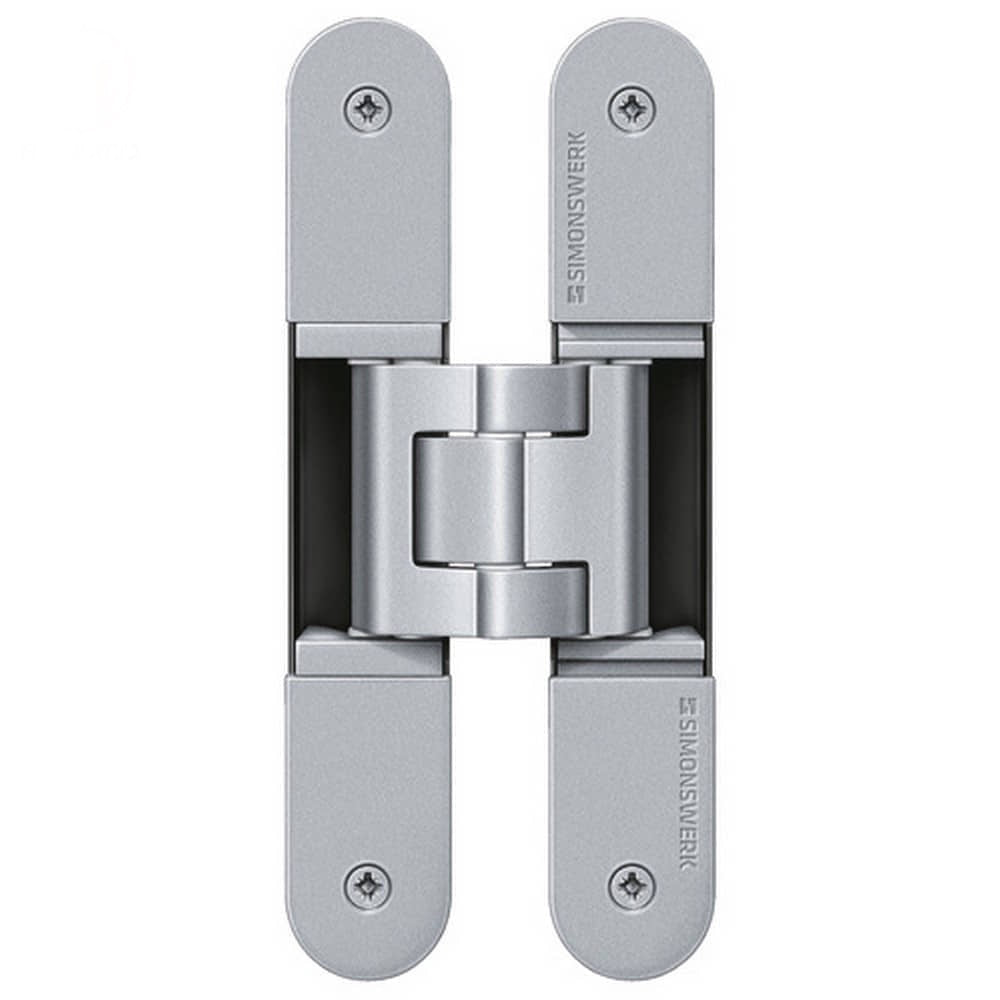

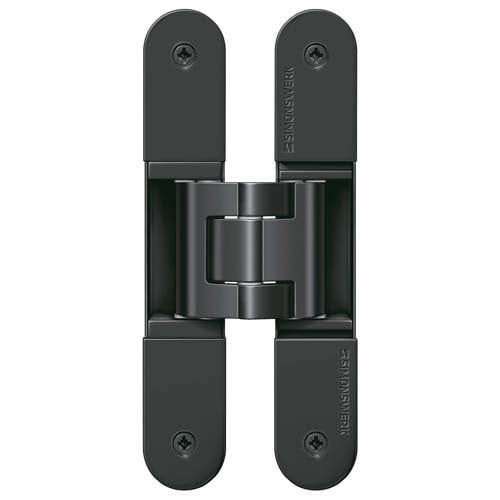

The Simonswerk Tectus TE 340 3D is a premium completely concealed hinge designed for flush, unrebated doors . it is engineered to blend seamlessly into modern interiors for a completely hidden look.
| Attribute | Specification |
|---|---|
| Model | TE 340 3D |
| Manufacturer | SIMONSWERK |
| Hinge Type | Completely concealed 3D adjustable hinge |
| Door Type | Flush (unrebated) residential and heavy-duty doors |
| Frame Material | Timber, steel, or aluminium |
| Maximum Door Weight | 80 kg (using 2 hinges on a standard 1 × 2 m door) |
| Minimum Door Thickness | 36 mm (some regional specifications state 38 mm depending on market version) |
| Opening Angle | 180° |
| Overall Length | 160 mm |
| Door Part Width | 28 mm |
| Frame Part Width | 28 mm |
| Router Cutter Diameter | 24 mm |
| Guide Collar Diameter | 30 mm |
| Adjustment | 3D Adjustable: Side ±3 mm, Height ±3 mm, Compression (Depth) ±1 mm |
| Bearings | Maintenance-free slide bearings |
| Handing | Universal (DIN Left & DIN Right) |
| Certifications | CE, IFT, UL, Warringtonfire tested |
| EN Classification | EN 1935: **3 7 4 1 1 1 — 2 0 11 |
| Fire Door Use | Suitable depending on the complete tested door assembly |
| Installation | Requires dedicated TECTUS routing templates and drilling jig |
